Product Description

The electromagnetic overhead crane adopts the electromagnetic disc as its lifting mechanism. And its trolley running mechanism adopts the low-speed shaft centralized driving structure, and the trolley running adopts the structure of independent driving on both sides. According to the rotation, we divide mode into upper rotation type and lower rotation type. And there are three different control methods, ground operation, air operation and control operation. Users could choose the suitable control way in accordance with the actual needs.

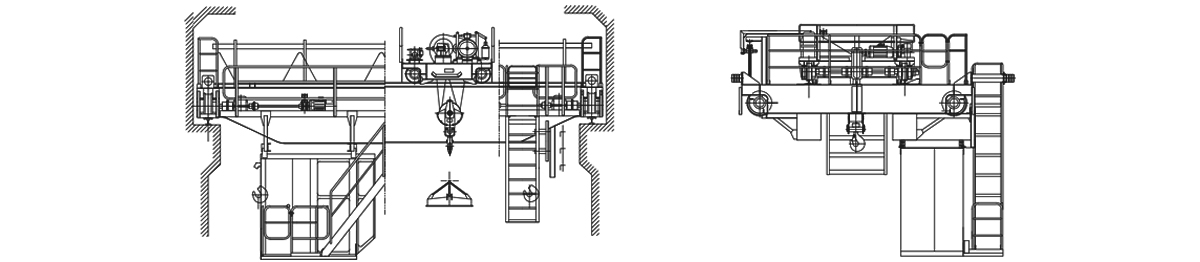

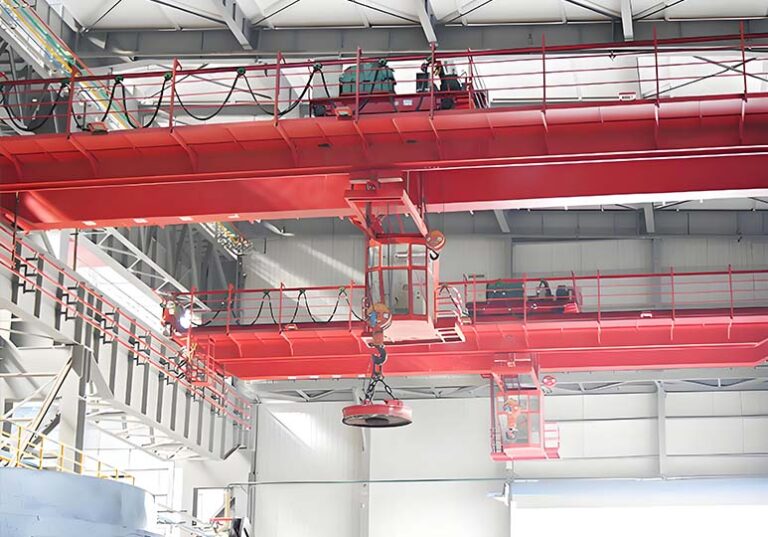

The basic structure of the electromagnetic overhead crane is the same as that of the hook bridge crane. Main difference is that a DC lifting electromagnetic sucker is the lifting mechanism, which is for lifting the black metal and its products with magnetic conductivity. Its AC power supply is converted into DC power supply through the DC box installed in the driver's room. And then the DC power cable is sent to the electromagnetic disc through the special cable reel located on the electric trolley.

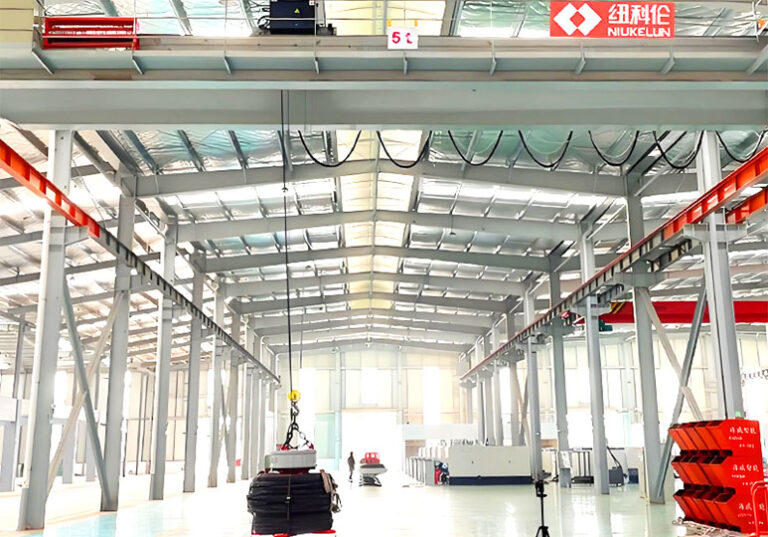

Electromagnetic bridge crane is suitable for lifting and handling in workshops, warehouses, docks and other places. Through functions of adsorption, loading and unloading, it helps achieve seamless connection of all links of item transfer and processing.

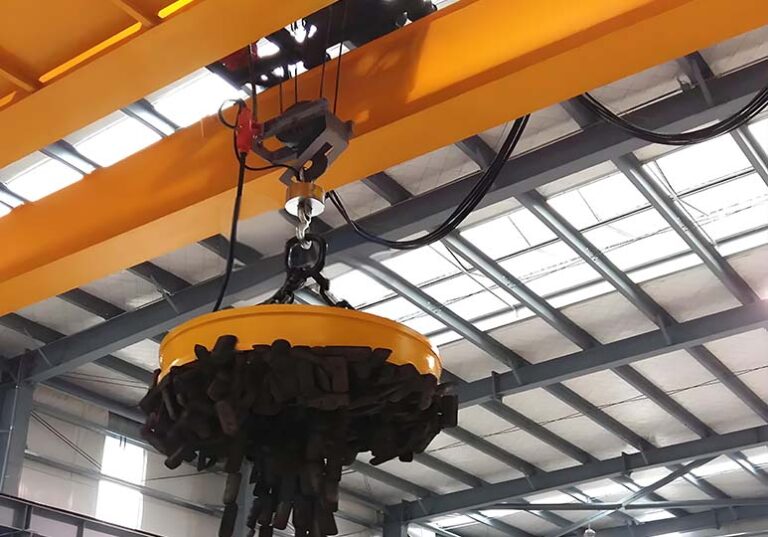

Electromagnetic overhead cranes play an important role in scrap iron recycling departments and steel-making workshops. They can easily collect and move scattered iron blocks or other iron materials without boxing, packaging or bundling.

Product Features

• Non-contact handling: Absorb metal materials without the need for physical gripping devices, suitable for handling magnetic materials such as steel plates and billets.
• Efficient Performance: Simplify the loading and unloading process, and improve work efficiency, especially in steel mills and scrap recycling yards.
• Accurate positioning: Accurately control the strength of the electromagnetic force, stable adsorption and accurate placement of goods.
• High degree of automation: Supports remote control or programmed automated operation, improving the safety and consistency of operations.
• Low maintenance cost: Withour complex mechanical gripper structure, reduce the maintenance frequency and maintenance cost.

Technical Parameters

Lifting Capacity	5~64 ton
Span	5m~60m
Lifting Height	5~100m
Lifting Speed	7.8~15m/min
Long traveling speed	87.3~116.8m/min
Cross traveling speed	37.2~44.6m/min
Power supply	AC 380V 50Hz
Working Class	A5~A8
