Product Description

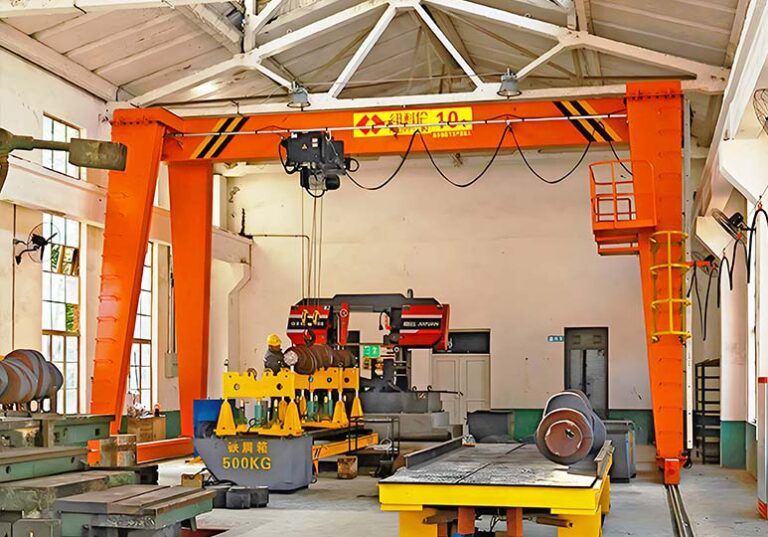

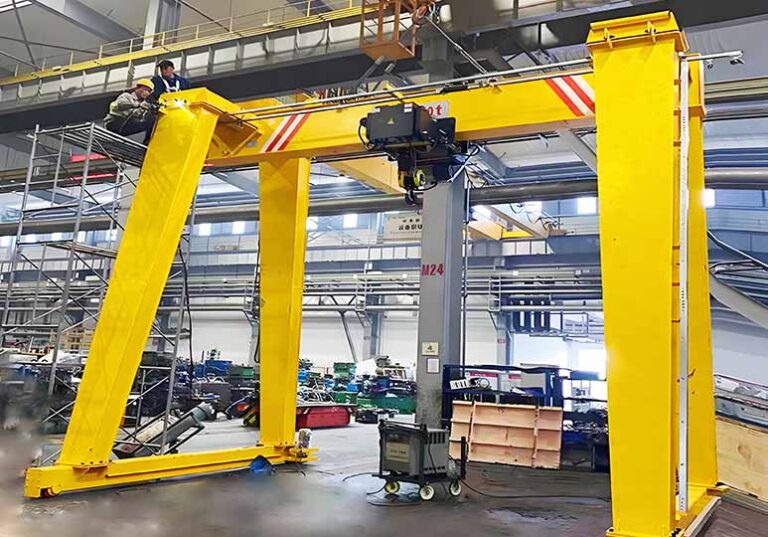

Single girder gantry crane is a common use crane lifting equipment. The structure of this gantry crane includes main beam, supporting legs, electric hoist, and control system etc.. Its electric hoist offers smooth and reliable operation with precision and safety. It is mainly for loading, unloading and handling of goods in factories, warehouses and docks. The name of gantry crane comes from its box-type shape. The gantry is the supporting structure of the entire equipment. It is suitable for both indoor and outdoor environments and can lift different types of materials.

The hoisting mechanism of single girder gantry crane includes an electric wire rope hoist, a drum, wire rope, block and tackle. The electric hoist is the core component of the lifting mechanism. The electric motor drives the drum to rotate, thereby lifting or lowering the heavy object.

Application

Due to its advanced structure and easy operation, single beam gantry crane has made a wide application in many industries.

• Factories and workshops: To lift raw materials or finished products.
• Construction sites: To help install components such as concrete slabs, steel frames, etc..
• Steel plants: For the handling of long steel strips
• Automobile manufacturing plants: For lifting of parts on the assembly line

Advantages

• Simple structure: Due to its simpler design, it also has lower cost.
• Wide application range: Suitable for lifting small and medium-sized objects, especially for places where the lifting weight requirement is not high.
• Easy operation: Users could choose a remote control or a control panel in the cabin for convenient control.
• Durable quality: Building with high standard material, it could offer long service life.

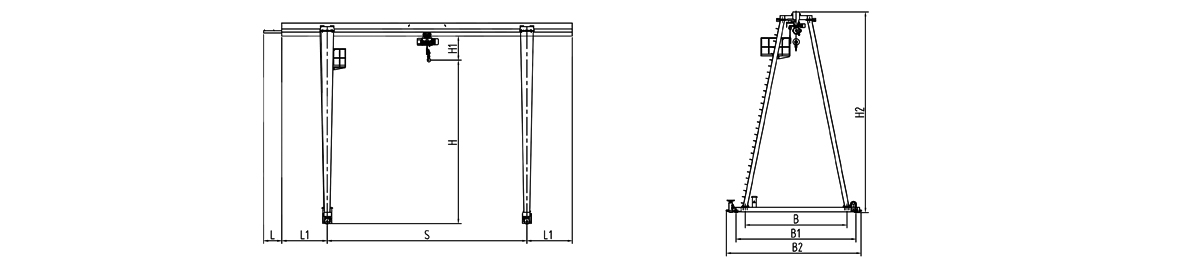

Technical Parameters

The product name	MH Electric hoist gantry crane
Lifting Capacity	3.2-32 ton
Span	7.5-35 meter
Maximum lifting height	6-12 meter
Hoisting speed	3-8m/min
Crab travelling speed	20m/min
Gantry travelling speed	20-30m/min
