MG Truss Type Double Girder Gantry Crane

MG truss type gantry cranes are often portable, allowing them to be moved from one location to another within a facility or between working sites.

  • Lifting Capacity(ton) 40~100 ton
  • Lifting Height(m) 9~12 meter
  • Span 20-40 meter
  • Working Grade A5

Product Description

Gantry Crane is a special lifting equipment designed with a framework composed of triangles to form a rigid structure. It has the advantages of stable structure, excellent performance, simple operation, convenient use, safety and reliability, easy disassembly, etc. Unlike fixed overhead cranes, MG truss type gantry cranes are often portable, allowing them to be moved from one location to another within a facility or between working sites. This makes them ideal for temporary installations or for use in locations where permanent crane installation is not feasible. It is applicable to the fields of road and bridge such as public-railway bridge project, construction and water conservancy project, prefabrication of concrete components, and laying of tracks in tunnels. Our factory truss type gantry crane adopts lightweight and modular design, so it makes a better and more convenient use.

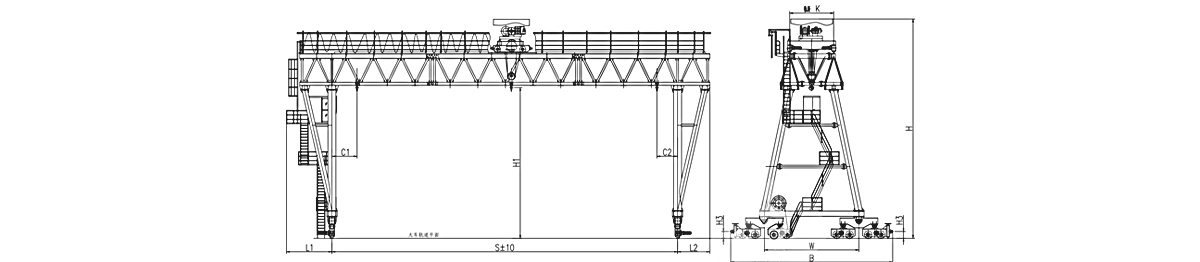

MG truss gantry crane has double girder and double rail structure, and the main girder is a triangular truss structure. It can be customized to fit specific workspace dimensions and operational needs, including different heights, spans, and wheelbase configurations. Our MG truss type gantry cranes also have safety features such as overload protection, emergency stop switches, and limit switches to prevent over-travel.

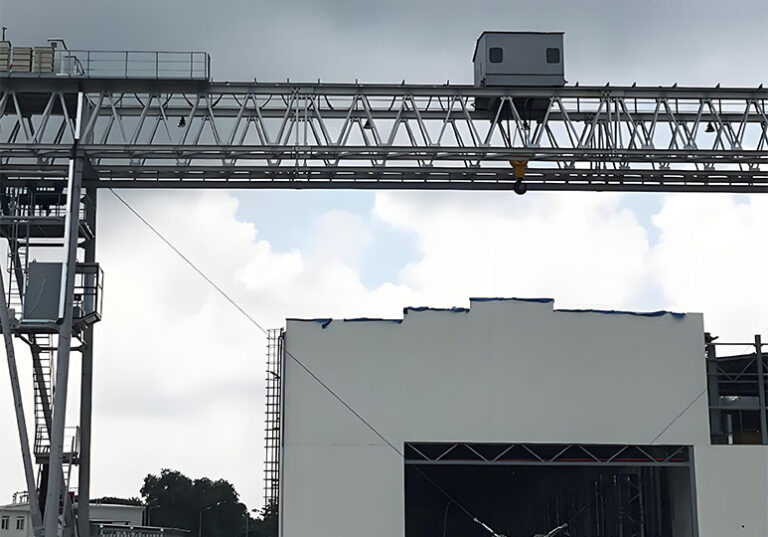

truss type gantry crane

Application

We mainly apply truss gantry crane in ports, shipyards, construction sites and other industrial fields. It is popular in places which require heavy material handling due to its light structure and high strength.

  • Railway freight yard: for loading and unloading of goods in railway transportation, especially for large or heavy goods.

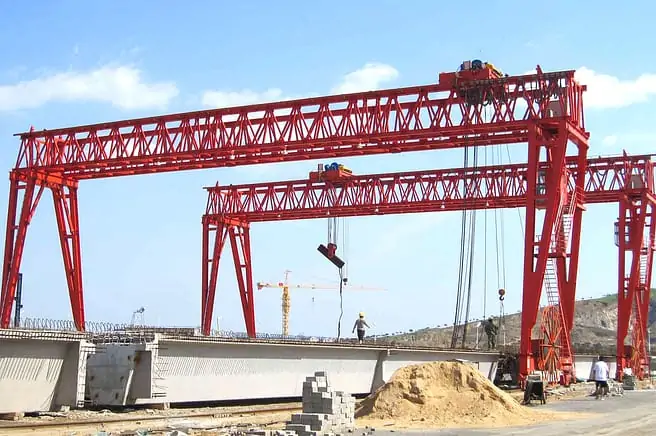

  • Water conservancy projects: During the construction of water conservancy facilities such as dams and reservoirs, lifting large hydraulic machinery and structural parts.
  • Mining: in open-pit mines, directly loading ore for transportation after excavation, or transporting mineral raw materials in the ore dressing plant.

Product Features

  • Stable structure and excellent performance.
  • Simple operation, easy to use.
  • Safe and reliable, easy to disassemble
  • Special design truss beam for more stable lifting

Technical Parameters

Lifting Capacity(ton)40~100 ton
Lifting Height(m)9m~12m
Span(m)20m~40m
Power SupplyAC 380V 50Hz
Work dutyA5
