This type of overhead crane is mainly using in the location where is no possible install columns to support the overhead crane.

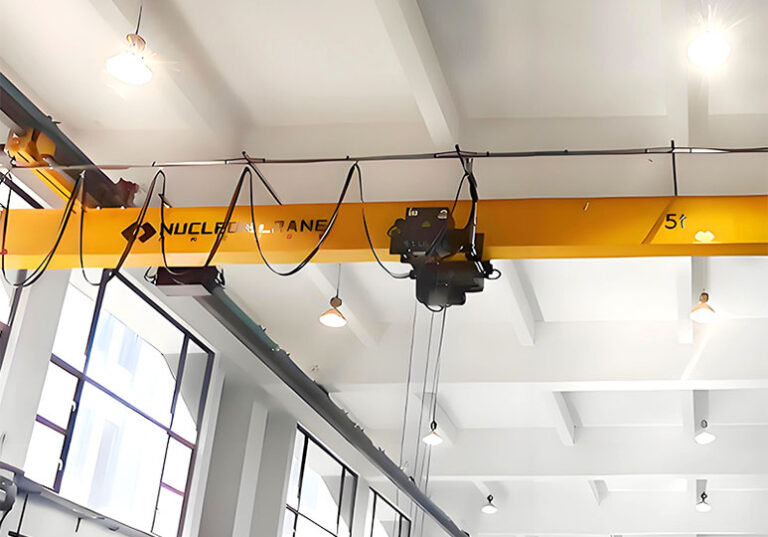

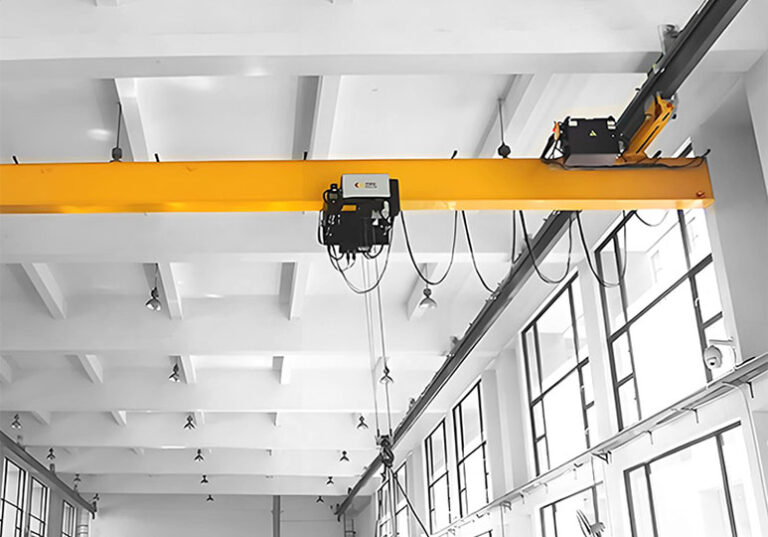

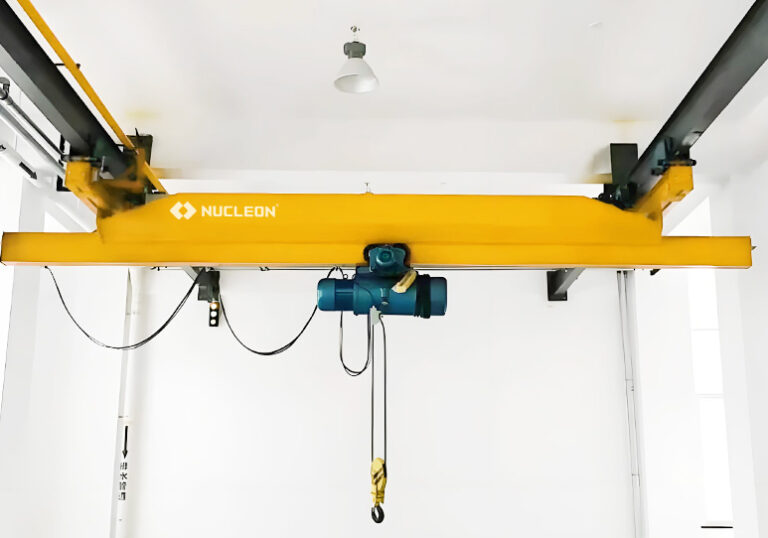

The LX type single beam suspension bridge crane is a light duty lifting overhead crane equipment. This type of crane is mainly using in the location where no columns could support the overhead crane. The end beams of the suspension bridge crane ride on the bottom flange of runway beam. Typically, suspension bridge crane suspends one the roof of the building and is available only on lighter capacities, no more than 10 tons.
It is good for working environment within working temperature between -25℃—40℃. It is not suitable in locations, where are stocks of flammable, explosive and corrosive materials. This overhead bridge crane model matches technical standard JB/T2603-94. This high standard design ensures smooth performance and longer service hours.

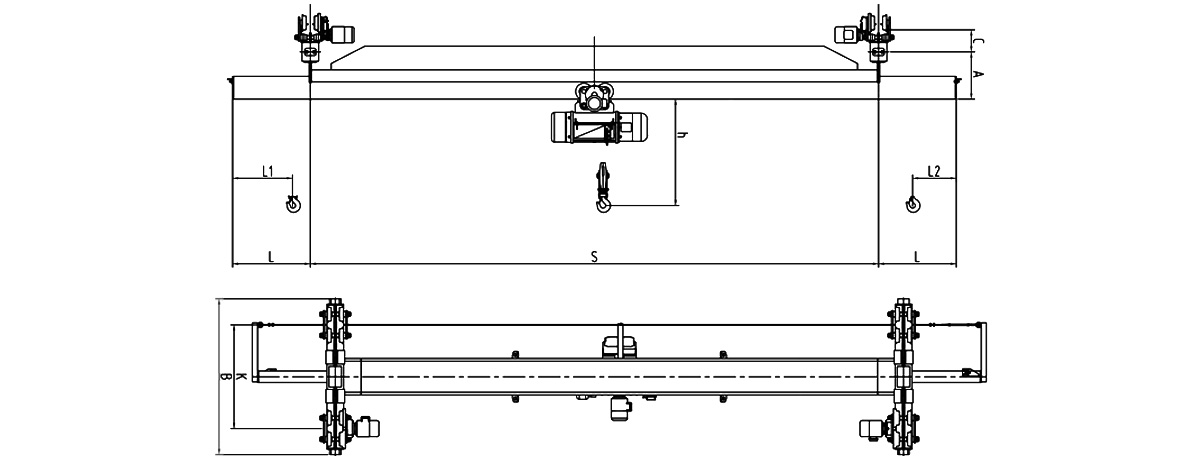

The structure of overhead crane includes hoist, single girder, end beam and electric control system. It also has low height, small size, light weight, small pressing wheels. Its operation mode consists of cable operation, wireless remote control. The high performance braking system with anti-dust device can be automatically adjusted. This bridge crane has advanced design with outstanding distribution and performance effectively improves the space utilization. And this design makes the customer may reduce the plant investment costs.

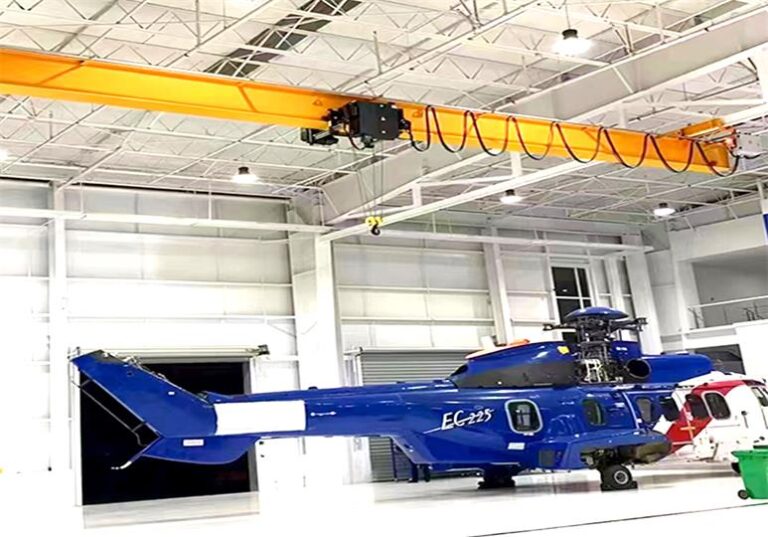

Being closer to the ceiling and away from the work area, LX bridge crane could produce less noise interference in the workspace. It is an ideal light lifting bridge crane for workshops, warehouses and many other plants. We could also provide customization solutions based on actual working sites.
Light and simple structure
One single main beam design, light lifting duty and easy control.
Easy to install in different working sites
Suitable for small and limit space building.
Quite cost-effective
Cheaper cost, saving budget and improving profits.
| Lifting Capacity(t) | 1 | 3 | 5 | 10 |
| Span(m) | 3~22.5 | |||
| Work class | A4 | |||
| Power Supply | AC 380V 50Hz | |||
| Crane travelling meehanism | Travelling speed(m/min) | 20 | ||
| Power(KW) | 0.4*20.8*2,0.37*2,0.75*2 | |||
| Lifting&travelling mechanism | Travelling speed(m/min) | 20/30 | ||
| Hoist type | CD/MD | Lifting speed(m/min) | 6-30 | |
| Capacity(t) | 1-10 | Lifting height(m) | 5-13 | |
| Span(m) | 3~22.5 | |||
| Power Supply | AC 380V 50Hz | |||
| Wheel diameter | Φ134,Φ154 | |||
| Work class | A4 | |||
