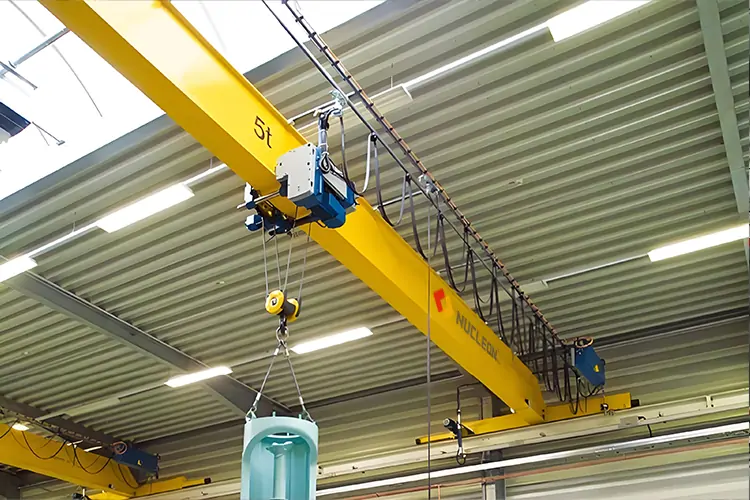

LD Type Single Girder Electric Overhead Crane

Product Description

LD Type single girder electric overhead crane is a lightweight lifting equipment, which adopts high-strength structure design with excellent load carrying capacity and stability. It is often used in conjunction with CD1 and MD1 electric hoists, with lifting capacities ranging from 1 to 32 tons, spans from 7.5 to 31.5 meters, and working classes from A3 to A4 (working class is a key parameter for measuring the frequency of hoisting and the strength of hoisting).

The LD electric overhead travelling crane offers two operating modes:

Ground Remote Control: Flexible operation by wireless remote control, suitable for small working environments.

Operator room control: Equipped with open or closed cab, supporting side door or end door access, meeting different users' operating habits and space requirements.

For more detailed information or customized service about LD type electric single girder overhead crane, please contact our professional team, we will provide you with the best technical support!

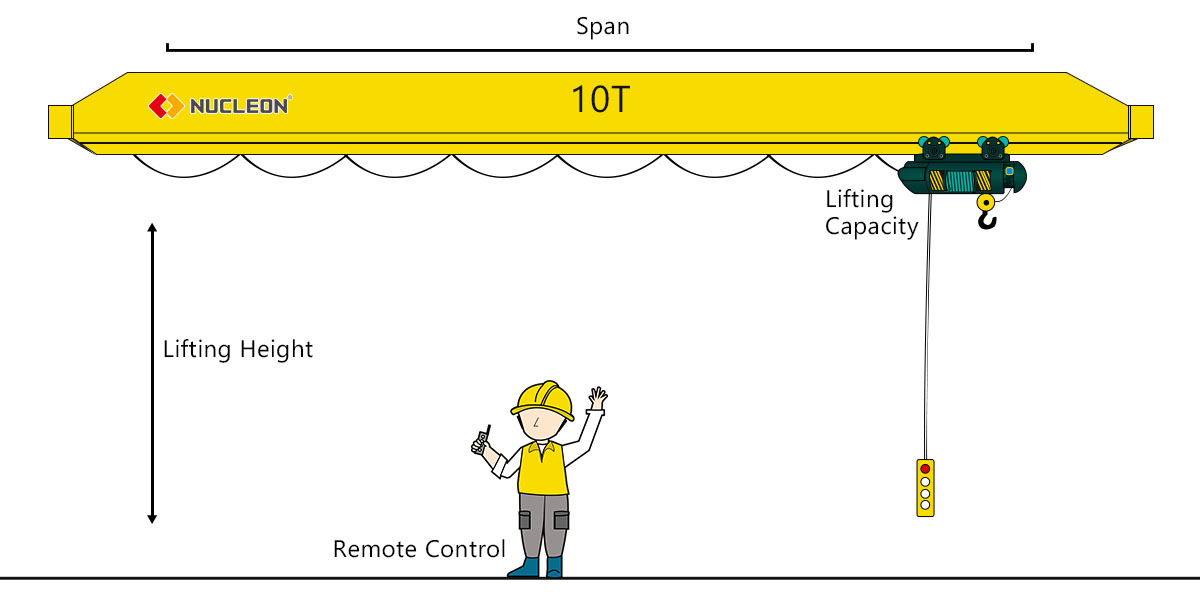

electric overhead travelling crane design — Electric Overhead Travelling Crane Design

Application Fields

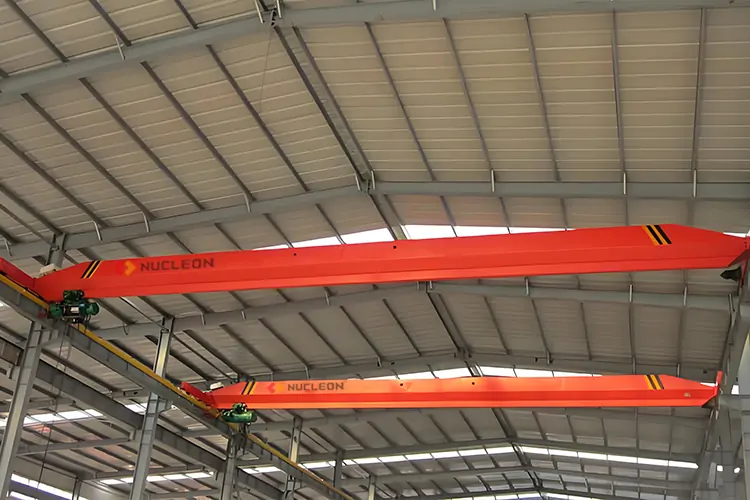

LD type electric overhead cranes are widely used in the following scenarios:

Steel mills: for lifting and handling of heavy materials.
Warehouses: for lifting and stacking of goods in storage logistics.
Workshops: for equipment installation and material transfer in production lines.
Material warehouse: for vertical transportation and storage management of raw materials.

Product Features

Simple structure: The structure of single-girder overhead crane is relatively simple, which makes its manufacturing cost low and easy to maintain.
Lower energy consumption: Under the premise of meeting daily production needs, electric single girder overhead cranes have smaller power consumption, which helps to reduce operating costs.
Space Saving: Overhead crane provides smooth running performance while taking up less space, helping to improve overall site utilization efficiency.

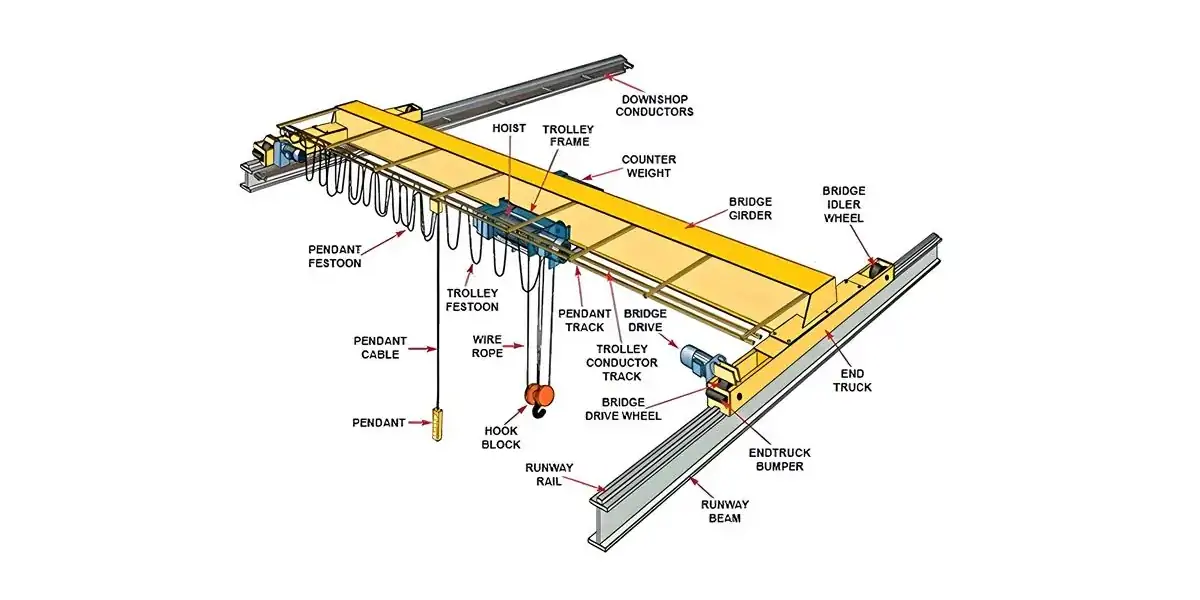

Electric Overhead Crane Parts

LD type electric overhead crane is a kind of rail traveling lifting equipment, which is made up of the trolley running mechanism (including end girder, wheel set, running motor, gearbox), main girder, wire rope electric hoist or chain hoist, lifting electrical system and other parts. The main girder and end girder of this crane can be connected with hanging type, semi-seated type, seated type plus high design form according to the demand.

Specifications

Crane travelling mechanism	Travelling speed(m/min)	20/30
	Power(KW)	0.82,1.52,2*2.2
Lifting&travelling mechanism	Travelling speed(m/min)	20/30
	Hoist type	CD/MD	Lifting speed(m/min)	6-30
	Capacity(t)	1-32	Lifting height(m)	8,7,35
Span(m)		7.5~31.5
Power Supply		AC 380V 50Hz
Wheel diameter		Φ250,Φ315
Work Grade		A4

Customize Electric Overhead Crane

As a well-known manufacturer of overhead cranes in China, Nucleon Crane can provide customized solutions according to your specific needs, including non-standard lifting capacity, lifting height, lifting/running speed, and adjustment of control methods. At the same time, we also provide a full range of services such as design and manufacture of lifting equipment, installation and commissioning, equipment modification, overhaul, maintenance and annual inspection and maintenance.

If you need to know more about explosion-proof, grab, electromagnetic suction cup, metallurgical high-temperature resistant, European new type (low headroom), suspension and other types of national standard/non-standard/special-purpose electric single girder cranes, as well as the related technical parameters, drawing design, construction program and quotation and budget, please feel free to consult our technical team.
