Steel Plant Foundry Casting Crane Manufacturer

Product Description

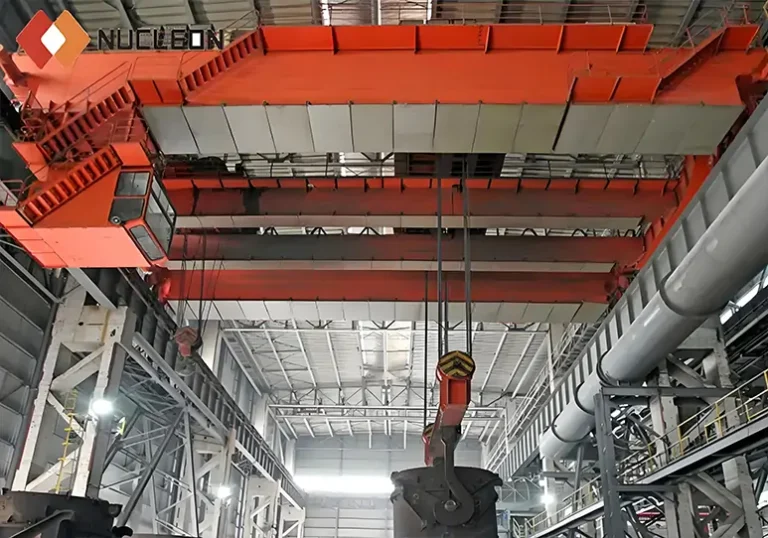

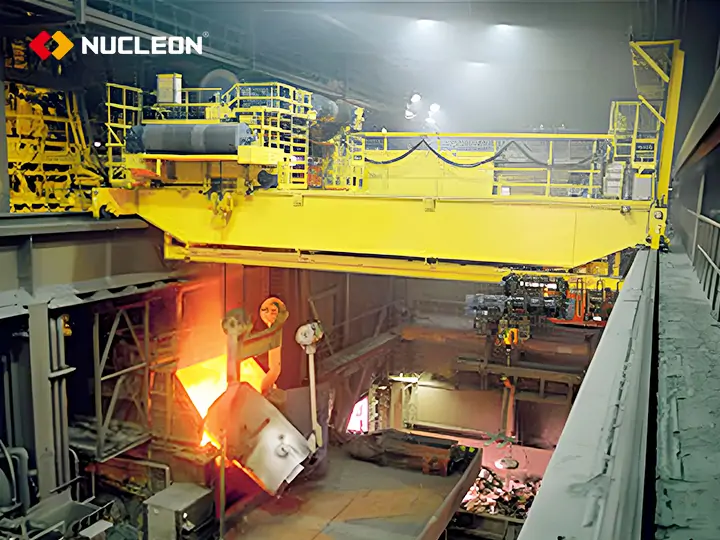

YZ type foundry casting crane is a heavy lifting equipment specially designed for steel smelting workshop, which is mainly used for lifting, transporting, pouring and blending molten iron of high temperature liquid metal and other operations. This series of foundry cranes are mainly designed for 160/32 tons, 180/50 tons, 200/50 tons, 225/65 tons, 240/80 tons, 320/180 tons (T) and other tonnage, and the working class is A7 (heavy duty), which can satisfy the needs of harsh industrial environment.

Structural Features

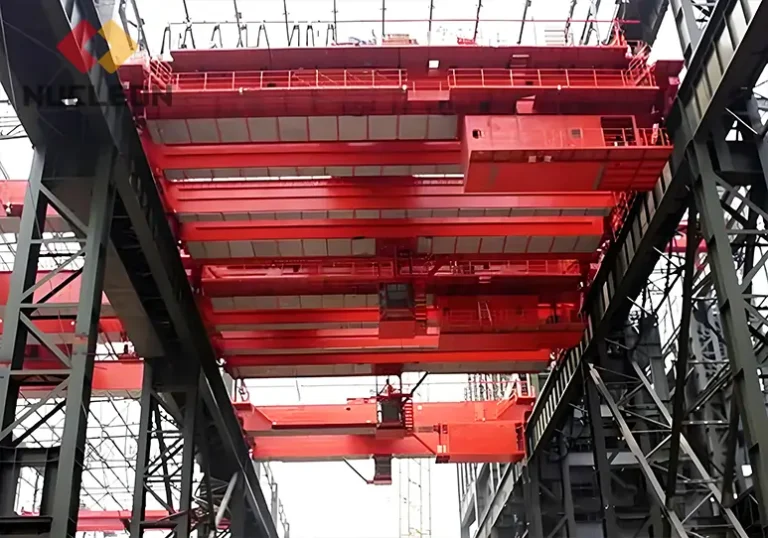

Double girder and four girder structure: Nucleon foundry casting crane is usually divided into double girder and double rail, four girder and four rail, four girder and six rail and other types. The lifting capacity of less than 125 tons usually adopts YZ type double girder structure, and the lifting capacity of more than 125 tons adopts YZS type four girder structure. YZS type four girder casting crane main structure is designed as 4 girder 6 rail.

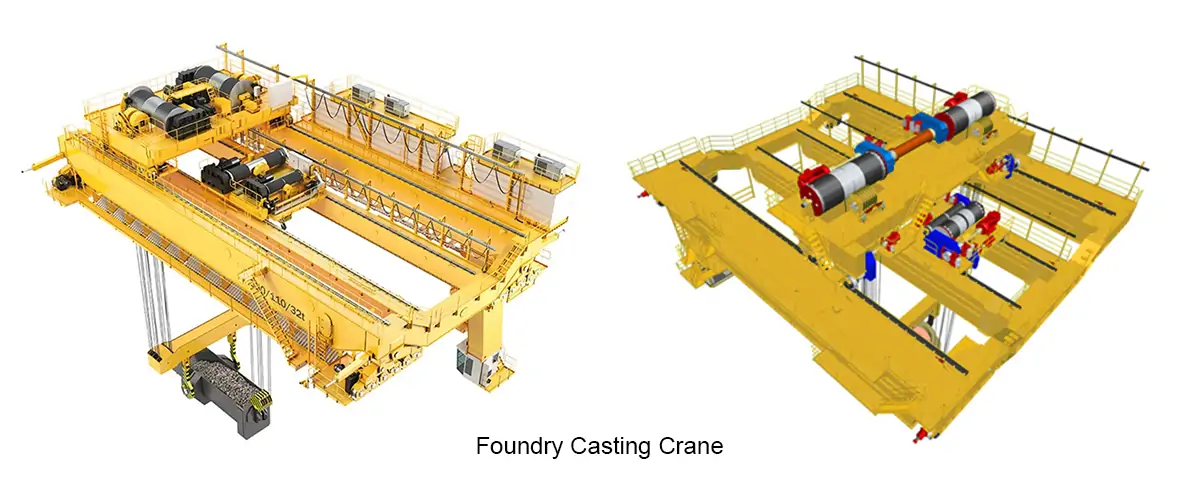

Primary and secondary trolley design: The primary trolley is equipped with a hook beam with fixed spacing for lifting ladle. The secondary trolley is equipped with a hook that runs underneath the primary trolley to perform auxiliary operations such as steel dumping and slag cleaning in conjunction with the primary hook.

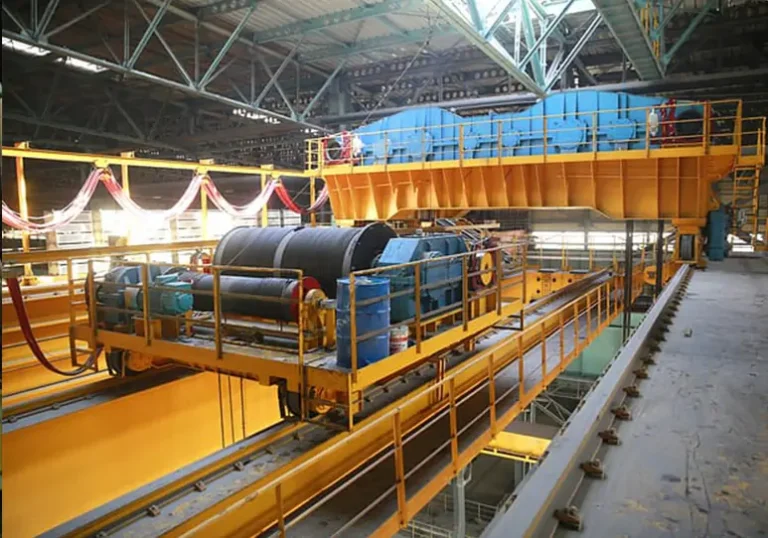

Four girders and four rails layout: The main trolley runs on the main girder track on the outside of the bridge frame, and the secondary trolley runs on the secondary girder track on the inside, realizing independent and flexible operation mode.

Main Components

Overhead: Carries the whole structure of the crane.

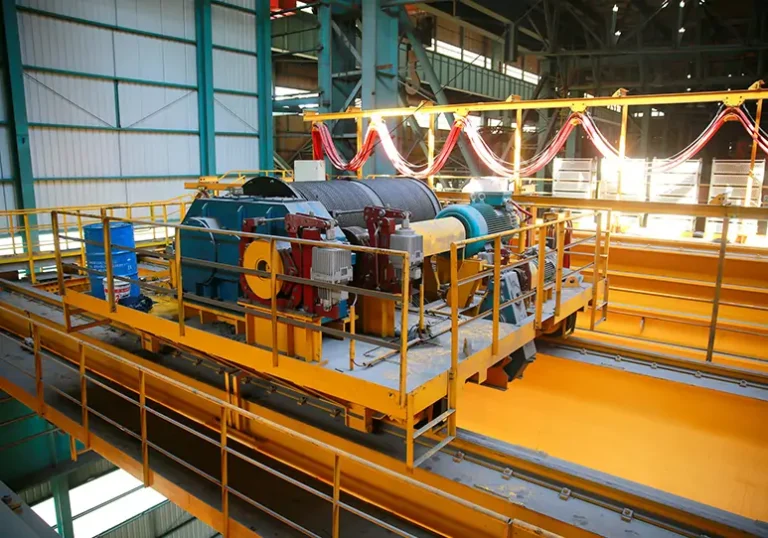

Main trolley: Equipped with a hook beam, it is responsible for the main lifting task of the ladle.
Sub-trolley: Equipped with a hook to assist in dumping and other operations.
Hook girder: Connects the main trolley with the ladle to stabilize the lifting process.
Trolley running mechanism: Drives the bridge crane to move along the track.
Electrical system: Controls all operations of the casting crane to ensure operational safety.

Technical Features

Multiple safety mechanisms: Equipped with overload protection, double emergency brake, crane switch and travel limit switch.
Electrical safety: Protective earthing and high temperature resistant cables are used to effectively prevent the risk of electric leakage and short circuit.
Thermal Protection: The cockpit is equipped with tempered glass insulation and thermal protection coating on the bottom to provide a safe and comfortable working environment for operators.
High-efficiency power system: The main lifting motor is equipped with a thermal protection device and a medium-rigid reducer, which makes the lifting operation smooth and efficient.
Durable lifting mechanism: Adopting rolling pulley and steel core wire rope, the lifting mechanism operates smoothly, has strong loading capacity and long service life.
Cushioning and shock absorption: Equipped with rubber buffer, effectively absorbing the impact and reducing the wear and tear of the equipment.
Convenient operation: P-type hooks are reasonably designed to facilitate lifting operation and improve working efficiency.

Specifications

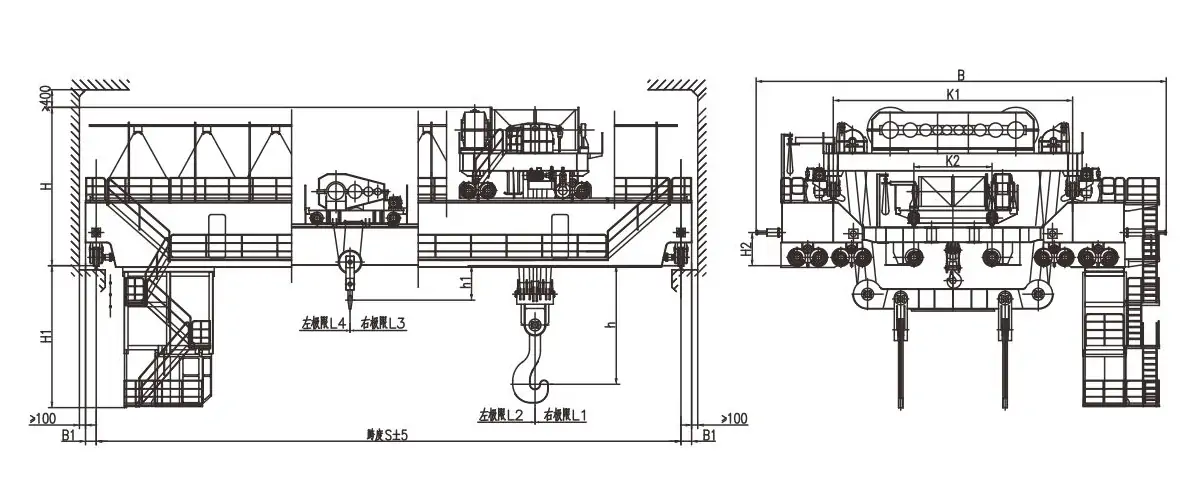

The following are the technical parameters and external dimension drawings of YZS type 180/50, 200/50, 225/65, 240/80 tons four-beam casting bridge cranes, which can be customized according to different needs.

Lifting capacity (t)		180/50	200/50	225/65	240/80
Working class		A7	A7	A7	A7
Span S (m)		28.5	28	27	22
Lifting height (m)	Main Hook	27	26	32	25
Lifting height (m)	Secondary Hook	29	26	34	27
Speed(m/min)	Main Hook	7.5	6	11	7
	Secondary Hook	10	10	11	9.6
	Main Trolley	40	41	41	35
	Side trolley	38	38	39.5	38
	Crane	80	78	84	80
Main dimensions(mm)	H	6850	6900	7000	7000
	H1	5860	6000	5990	565
	H2	1350	1650	1400	1350
	BQ	17500	17000	17300	18500
	B1	10500	10000	10100	11250
	B2	3500	3200	3300	3800
Limit size(mm)	b	4500	450	450	450
	H3	5500	6000	5800	5500
	H4	1200	1000	1000	1500
	S1	2450	2600	2500	2800
	S2	3000	3000	3000	3200
	S3	2000	2000	2200	2400
	S4	1600	1600	1600	2800
Maximum wheel pressure (KN)		525	530	550	545
Recommended rails		QU120	QU120	QU120	QU120
Power supply		Three-phase AC 380V-50Hz

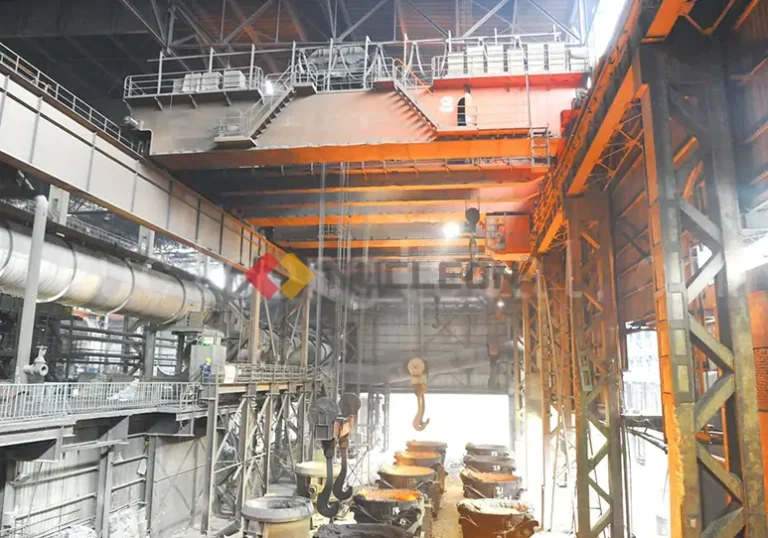

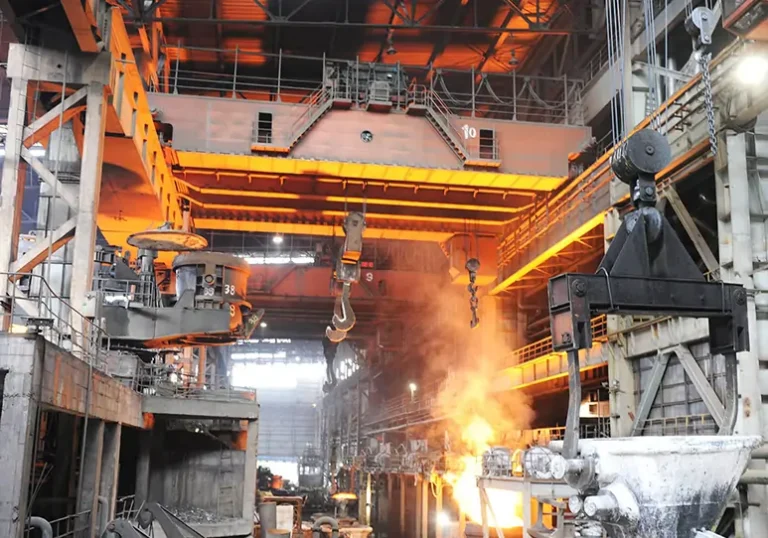

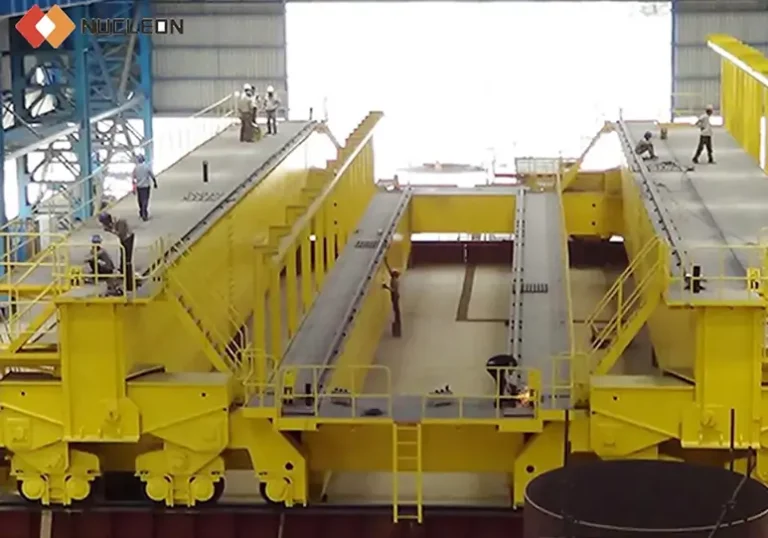

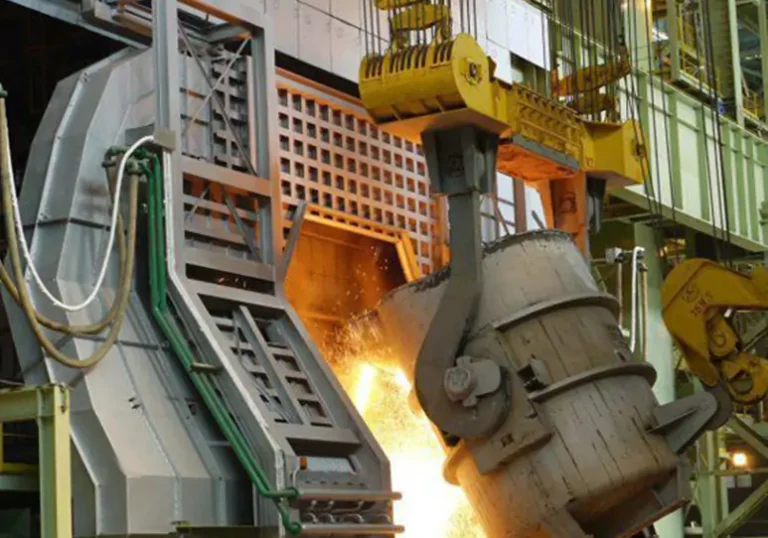

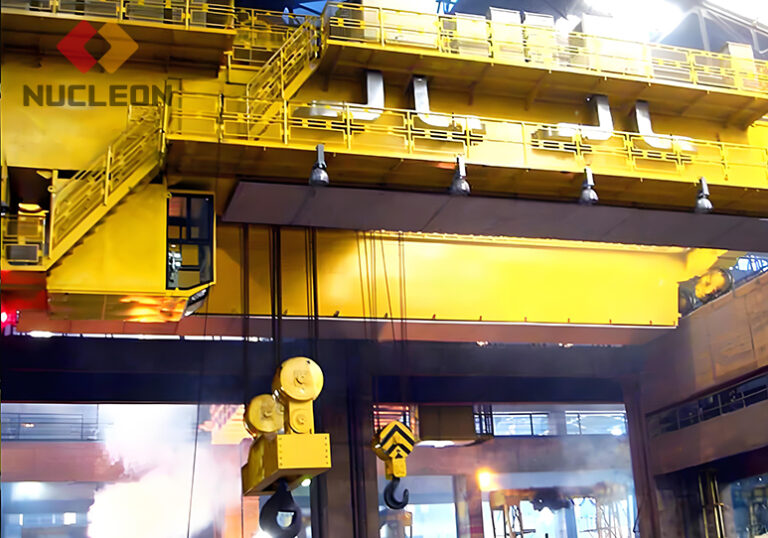

Customer Site

Customized Foundry Casting Crane

Nucleon Crane, as a professional manufacturer of foundry casting cranes, has 20 years of R&D and manufacturing experience. We provide highly customized solutions including: lifting capacity, lifting height, lifting/running speed, control mode and other parameters. We also provide the following full range of services:

One-stop turnkey project: We provide complete lifting solutions, including the entire crane system, power system, rail system to steel structures such as support beams and columns.
Professional Installation and Commissioning: We will send a team of experienced engineers to guide the installation on site, carry out load testing and commissioning, and provide comprehensive training to your operators.
Reliable Quality Assurance: We provide 12-month warranty for all our products, and free replacement service for non-man-made damage parts within one year.
Round-the-clock technical support: We provide 7*24 hours round-the-clock technical support. No matter when and where, you can get help by phone, e-mail and other ways. If necessary, our engineers will go to the site at the first time to solve your crane failure problems.

Contact us now for more details or a quote on Foundry Casting Crane!
