European Single Girder Underhung Crane

Underhung Crane Definition

NLX European Single Girder Underhung Crane is a lightweight overhead bridge crane designed and manufactured according to European standards, which is mainly used in conjunction with European electric hoists. This suspension crane uses I-beams suspended from steel structures or prefabricated roof beams as running rails, and its structure is similar to that of an electrically operated single girder overhead travelling crane.

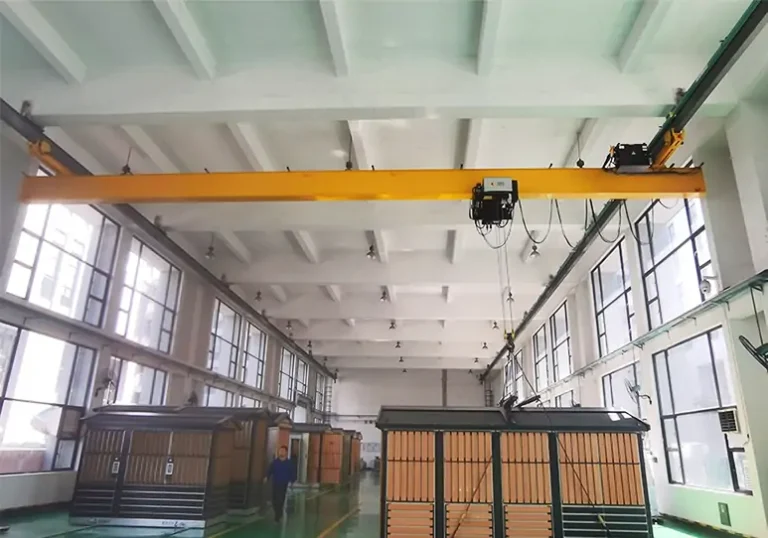

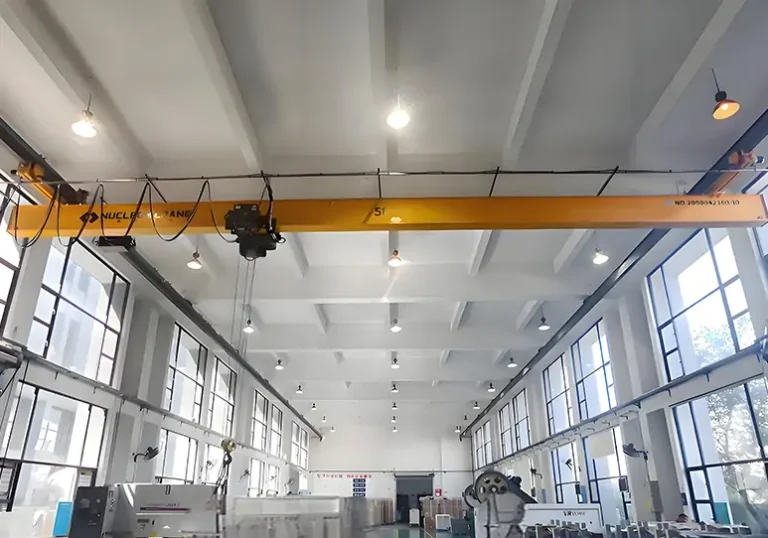

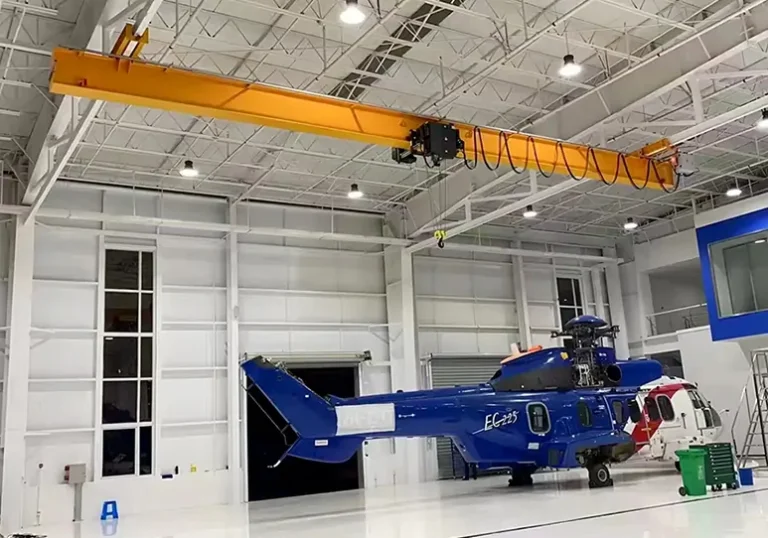

Due to the high requirements of the suspended design on the roof load-bearing capacity, its rated lifting capacity is usually limited to less than 10 tonnes. Single Girder Suspension Cranes are lightweight and easy to install and maintain, and are widely used in small standardised factories, production workshops, warehouses and yards, sewage treatment facilities, power stations, pumping stations and maintenance workshops.

Underhung Crane Components

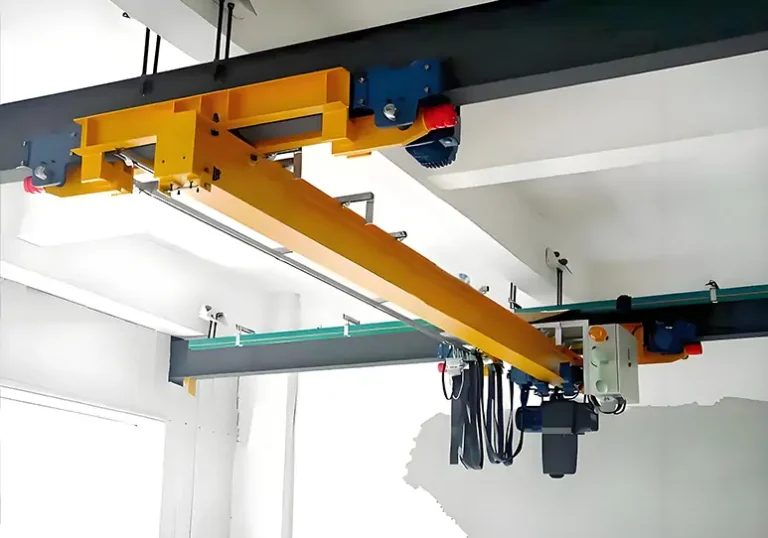

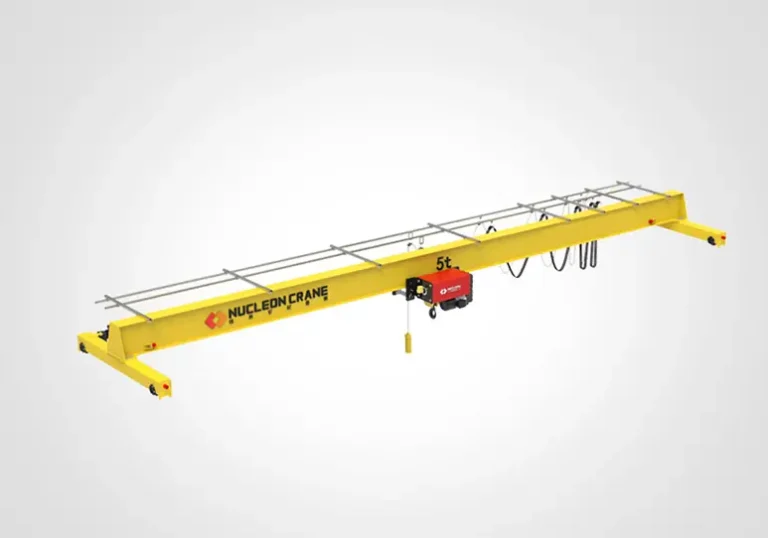

NLX European Single Girder Underhung Crane consists of steel plate and I-beam welded into the main beam, end beams, European electric hoist, suspended in the upper part of the plant on the I-beam track, cantilever length of 0.5 ~ 1m, the European electric hoist along the main beam of the I-beam under the edge of the wing to complete the lifting of the goods.

Specifications

Specification	Unit	Specification
Rated lifting capacity	Gn	1t、2t、3t、5t、10t
Span	S	3-15m
Lifting height	H	6m-18m
Temperature of working environment	℃	-25℃-"40
Working class	JC	A3-A4
Wheel diameter	JC	200-240mm
Working power supply	HZ V	3p A.C 50HZ 380V

Product Features

High-strength bolted connection between beam and suspension structure ensures lifelong stability and reliability
Compact geared motor drive with stepless speed control, hardened gears, safety disc brakes, protection class IP55.
High protection class IP55, insulation class F, supports 40% duty cycle
Excellent running performance, stepless speed control for smooth and precise movement.
Independent design of lifting and running mechanism, support synchronous operation, improve working efficiency.
Lightweight design, space-saving, suitable for low headroom environment.
Modular design, easy to install and maintain, adapt to a variety of industrial scenarios.
Low noise operation, energy saving and environmental protection, in line with modern industrial standards.

Customize Underhung Crane

Underhung Crane supports full customization, and you can choose to customize single-beam or double-beam structure to meet the lifting needs of different scenarios! Customization options include: lifting capacity, span and lifting height and other parameters. Among them, 1 ton, 2 tons, 3 tons and 5 tons of lifting capacity are popular in small load scenarios, and the maximum lifting capacity can reach 10 tons. Contact us now to get exclusive solutions and improve your work efficiency!
