Product Description

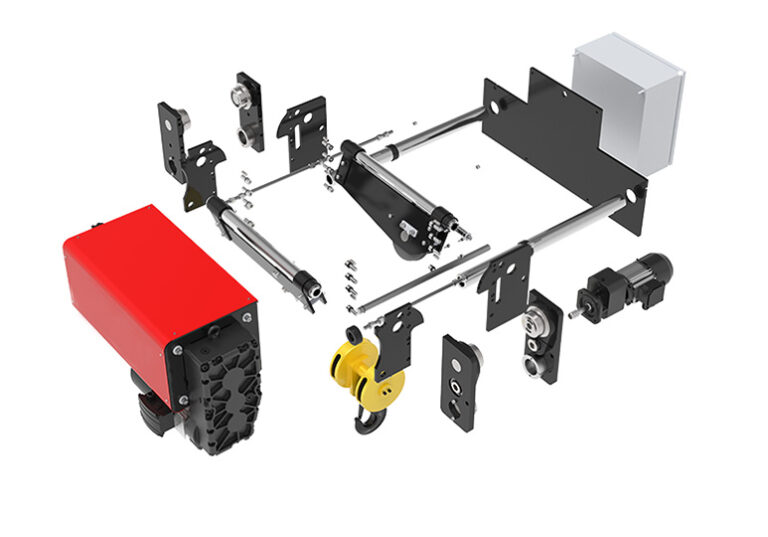

European electric hoist is a popular lifting equipment for material handling. It is compact and lightweight, suitable for use in factories, warehouses, etc. As an ideal hoisting mechanism, it often matches with overhead cranes and gantry cranes. It needs the main beam to support the entire electric hoist and moves along the track. Its electric motor provides power source for lifting tasks. Beside these parts, European hoist also has reducer, drum set, hook and electrical control system. The reducer reduces the speed of the motor and increases the torque so European hoist could meet the needs of lifting heavy objects.

Application

It is a quite popular and also essential lifting machine in many industries.

• Manufacturing: In the automobile manufacturing, mechanical processing, electronic assembly and other industries. It is for the handling of parts on the production line, hoisting operations during the assembly process, etc.
• Warehousing and logistics: In warehouses and distribution centers. European electric hoists can be installed on rails for loading and unloading and stacking operations of goods.
• Construction industry: Inside buildings or on construction sites. It is for vertical transportation of building materials such as steel bars, glass curtain walls, etc.
• Iron and steel metallurgy: Common in steel plants and rolling mills.
• Electric power: During the construction and maintenance of nuclear power plants, thermal power plants, and hydro-power plants, European electric hoists do auxiliary hoisting during equipment maintenance.

Product Features

• Compact design: European electric hoist is more compact, which could operate in limited spaces and adapt to smaller installation spaces.
• High efficiency and energy saving: With advanced motor technology and optimized design, European electric hoists can reduce energy loss during use and achieve energy saving.
• Lightweight: Due to the use of high-strength materials and optimized structural design, European electric hoists are lighter than traditional products and are easy to install and move.
• High-precision control: With advanced control systems, it can achieve smooth starting, stopping and speed adjustment, improving work safety and efficiency.
• Long life: High-quality manufacturing processes and materials used increase the durability of the equipment and reduce maintenance costs.
• Low noise: The noise level generated during operation is reduced by improving gear design and other noise reduction measures.
• Compliance with international standards: European electric hoists usually follow strict European safety and technical specifications to ensure product quality and user safety.

Technical Parameters

Lifting Capacity(KGS)	Work level (FEM)	Work Class (ISO)	Hoisting Speed (m/min)	Traveling Speed (m/min)
1000	4M	M7	0.8/5.0	5~20
1250	3M	M6	0.8/5.0	5~20
1600	2M	M5	0.8/5.0 Or 1.6/10	5~20
2000	2M/3M	M5/M6	0.8/5.0 Or 1.3/8.0	5~20
2500	3M	M6	0.8/5.0 Or 1.0/6.3 Or 1.3/8.0	5~20
3200	2M/1AM	M5/M4	0.8/5.0 Or 1.0/6.3 Or 1.6/10	5~20
5000	2M/3M	M5/M6	0.8/5.0 Or 1.0/6.3 Or 1.6/10	5~20
6300	1AM/4M/2M	M4/M7/M5	0.8/5.0 Or 1.3/8	5~20
8000	3M	M6	0.8/5.0	5~20
10000	1AM/2M/3M	M4/M5/M6	1.0/6.3 Or 0.8/5.0 Or 0.66/4.0	5~20
12500	1AM/2M	M4/M5	0.8/5.0 Or 0.6/4.0 Or 1.0/6.3 Or 0.6/4.0	5~20
16000	2M	M5	0.6/4.0	5~20
20000	1AM	M4	0.6/4.0	5~20
